When sourcing structural steel for industrial projects, choosing the right pipe grade can make or break your project timeline and budget. The EN10219-1 S355JRH pipe has become a go-to specification for procurement engineers across Eastern Europe, Southeast Asia, and the Middle East — and for good reason. With a minimum yield strength of 355 MPa, full CE marking compliance, and availability in circular, square, and rectangular hollow sections, this cold-formed welded structural pipe delivers reliable performance without inflating your material costs. This article breaks down everything you need to know before placing your next order.
|
|
|

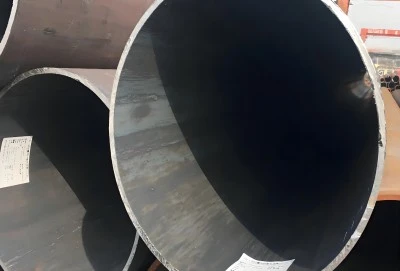

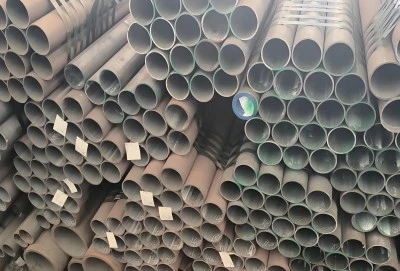

Understanding EN10219-1 S355JRH Structural Pipes
What the Grade Designation Actually Means
The name itself makes it clear what it is. "S355" means that the steel has a minimum yield strength of 355 MPa, and "JR" means that it passes the Charpy V-notch impact test at room temperature (+20°C), getting at least 27 Joules. This is a basic guaranty for normal structural settings. It's a hollow part object because of the "H" at the end. These EN10219-1 S355JRH pipes are made using high-frequency electric resistance welding (HF-ERW) or other compatible welding methods. They meet EN 10219-1 for mechanical properties and EN 10219-2 for dimensional tolerances.
Key Mechanical and Chemical Properties
When procurement teams know the technical profile, they can more accurately match materials to design needs:
- Yield Strength: At least 355 MPa (for walls 16 mm thick or less).
- Tensile Strength: 470 to 630 MPa (values depend on diameter and normal form).
- Minimum Elongation: 20–22%, based on the width of the section.
- Carbon Content: Maximum of 0.22% carbon; maximum of 1.60% manganese; maximum of 0.040% phosphorus; and maximum of 0.040% sulfur.
These chemical limits make sure that the metal can be strongly welded and bent, which are both very important when parts need to be cut, drilled, and put together quickly. Dimensional limits are based on EN 10219-2 and include concavity, convexity, and squareness. This lets manufacturers make profiles that are accurate and uniform from batch to batch. Controlled chemistry and cold-forming work together to make a smooth surface finish, uniform wall thickness, and a shape that fits easily into steel frameworks, which cuts down on rework on-site.
Applications of S355JRH Structural Pipes in Industrial Buildings
The structural parts of industrial buildings have to meet strict requirements. These needs are easily met by EN10219-1 S355JRH pipe, which is used as columns, perimeter frames, bracing members, and load-bearing supports in factories, stores, equipment platforms, and structures for conveyor systems.
The strength-to-weight ratio of hollow structure sections is better than that of solid sections or standard I-beams. This directly leads to less steel being used on each project, which is a big cost-cutting measure for buying managers who are working with limited funds. It's also easier to put together because the geometry is uniform, which makes it easier to detail connections, and the clean surface finish lets galvanizing and protective coatings stick on without any extra work.
- Column and frame applications: Square and rectangular hollow pieces can handle compressive loads well and provide clean bolt or weld connection points for beams and purlins.
- Bracing and secondary structures: Hollow circular sections can handle loads that come from all directions, which makes them perfect for diagonal bracing in high-bay warehouse frames.
- Equipment platforms and mezzanine decks: The precise dimensions of cold-formed pieces make flexible construction easier, which cuts down on installation time and labor costs for industrial fit-outs.
These benefits add up to faster project performance and measurable cost savings when buying materials, two results that directly help a project make money.
Comparing S355JRH Pipes with Other Related Grades and Types
Professionals in procurement often compare EN10219-1 S355JRH pipe to grades that are close by. The practical differences are shown in the table below:
S355JRH vs. S355J0H / S355J2H: The JR name only applies to impact tests that are done at room temperature. If your project needs to work in places that are below zero, like cold storage facilities, northern European sites, or infrastructure in the mountains, S355J0H (tested at 0°C) or S355J2H (tested at −20°C) will give you the extra toughness you need.
S355JRH (cold-formed) vs. EN 10210 S355JRH (hot-finished): Hollow sections that are hot-finished have lower residue stresses and are better for structures that are prone to fatigue or are actively loaded. When used in static applications, which is what most industrial building frames are, cold-formed pieces that follow EN 10219 have better size tolerances and are cheaper.
S355JRH vs. ASTM A500 Grade C: A500 Grade C has a similar yield strength floor (317 MPa for round and 345 MPa for shaped), but it needs to be tested for chemicals and impacts in different ways. Projects that need to follow European standards or have a CE mark cannot use something other than A500 without first having an engineer look it over.
Knowing these differences can help you avoid making mistakes that cost a lot of money and make sure that the grade you choose meets both the structural design standards and the owner/inspector acceptance criteria.
Procurement Considerations for EN10219-1 S355JRH Pipes
It is required to check the credentials of a supplier before committing to a purchase order. At the very least, you should ask any provider to provide the following paperwork for EN10219-1 S355JRH pipe:
- EN10219-1 CE marking and Declaration of Performance (DoP) — required for building projects governed by EU rules
- Material Test Certificate (MTC) per EN 10204 3.1 or 3.2 — shows that the heat number can be tracked and the real mechanical test results
- Third-party inspection reports (SGS, TÜV, Bureau Veritas) — an independent way to make sure that the heat and size data match the real product
The outside diameter, wall thickness, order volume, and spot steel market conditions all affect how prices change. Reliable sellers have tiered pricing systems that reward bigger order volumes. Lead times for standard sizes from well-known manufacturers with enough mill inventory are usually between 15 and 30 days. If the dimensions aren't standard or the rolling tolerances are very tight, check with the mill directly about the production schedule before setting the final project deadlines.
How to Test and Verify EN10219-1 S355JRH Pipes?
Several standard test protocols are used to make sure the quality of EN10219-1 S355JRH pipes:
- Tensile testing of tensile strength, yield strength, and stretch against EN 10219-1 minimums show that the material meets these standards
- Charpy V-notch impact testing at +20°C confirms that the JR impact energy standard of 27 Joules at the very least is met
- Bend testing checks how flexible the weld zone is without breaking it
- Chemical analysis such as optical emission spectrometry or combustion analysis, checks that the alloy elements and carbon equivalents are correct
On-site inspection teams should compare the MTC heat number to the markings stamped or stenciled on each section of the pipe. Checks for outside diameter, wall thickness, and straightness should stick to the tolerances set by EN 10219-2. If the buy order called for a third-party inspection, the projects should keep all inspection records for the owner to look over when the work is finished. Rigorous pre-shipment testing eliminates the risk of discovering non-conforming material after fabrication has begun.
Conclusion
EN10219-1 S355JRH pipe is a well-balanced structural steel standard. They are strong enough for demanding industrial uses, cheap enough to keep project costs down, and widely approved for use around the world. When purchasing teams make it clear from the start what requirements there are for CE marking, MTC paperwork, and third-party review rights, they set themselves up to get compliant materials on time. Upgrading to J0H or J2H during the design stage is much cheaper than a nonconformance after manufacturing for projects that will be used in sub-zero temperatures or that will be carrying moving loads.
FAQ
What is the difference between EN10219 and EN10210 for S355JRH?
EN 10210 rules for hot-finished hollow sections and EN 10219 rules for cold-formed welded hollow sections. Because they have less leftover stress, hot-finished parts are better for structures that are dynamic or fatigue-loaded. For static structural uses, cold-formed sections are cheaper and can be made to tighter tolerances.
Can S355JRH be used in sub-zero environments?
Impact tests on S355JRH are only done at +20°C. For uses below 0°C, you need S355J0H (tested at 0°C) or S355J2H (tested at -20°C). Before you choose the grade, you should always check with the structural expert to make sure the working temperature range is correct.
What are the welding requirements for S355JRH?
You can easily weld this grade with MIG, TIG, or submerged arc welding. Filler metals need to meet the 355 MPa yield strength standard, and the preheat needs to be in line with EN 1011-2 guidelines, which are based on the section width and carbon equivalent.
Is S355JRH suitable for hot-dip galvanizing?
Yes. To stop the Sandelin effect, which makes the zinc layer rough and brittle, the amounts of silicon and phosphorus must be kept within the reacting range. Talk to your supplier about the steel's chemistry before you galvanize it.
What tolerances apply to these pipes?
EN 10219-2 sets the rules for dimension limits, which include the outside width, wall thickness, straightness, and squareness of rectangular sections.
Request a Certified S355JRH Pipe Quote from Longma Group
Since 2003, Longma Group has been making ERW and LSAW structural steel pipes and sending them to over 90 countries. Their goods are fully approved under EN 10219, API 5L, ASTM A500, and many other international standards. As a confirmed provider of EN10219-1 S355JRH pipes, we offer full MTC paperwork, CE-marked materials, third-party inspection support from SGS/TÜV, tiered FOB prices, and standard measurements with 15–30 day wait times. To get a quote for your job right away, email our expert team at info@longma-group.com or go to longma-group.com.
